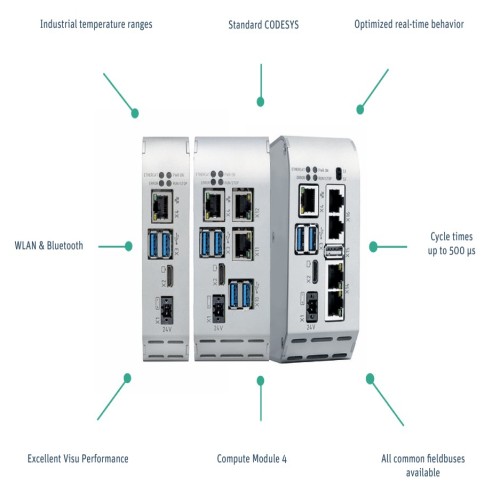

Modular CODESYS PLC based on Raspberry Pi with EtherCAT I/O system With the Raspberry-based B-Nimis MC-Pi Pro and B-Nimis MC-Pi Prime series, Berghof launches high-performance CODESYS quadcore controllers for the realization of your IIOT, motion and automation projects.
The real-time CODESYS quadcore controller B-Nimis MC-Pi offers an optimal ratio between computing power and cost with up to 500 ms cycle times.
We have perfectly integrated the MC-Pi product family into the Berghof I/O portfolio by means of EtherCAT standard fieldbus and plug & play expandability, providing you with numerous expansion modules to choose from.
The uncompromising adherence to general standards is not only expressed in the interfaces and connectable options, even internal mechanisms are oriented to them, such as with an internal communication system based on EtherCAT as a uniform concept throughout.
This allows you, the user, full control of all influencing variables. Furthermore, the devices can be easily installed and combined with other control components such as the standardized Berghof Primis or Fortis system.

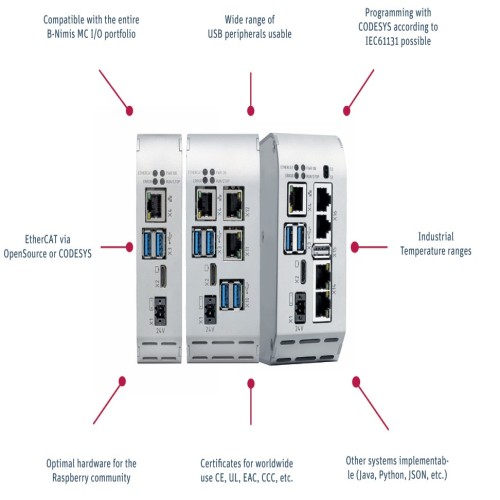

Industrial Box PC with Raspberry Pi OS Berghof goes Raspberry Pi.
With this sophisticated hybrid of an industrial PC and a PLC, Berghof introduces the first truly industrial-grade, high-performance Raspberry Pi solution to the market.
The versions available as a single slot module and as a double slot module with additional interfaces and optional heat sink not only impress with their compact design based on the B-Nimis MC series, but above all with the open system and thus the use of synergy with the Raspberry community.
As a Berghof customer, you benefit not only from seamless integration into the entire Berghof portfolio, but also from the special know-how of our specialists and thus comprehensive support.
Due to the high software compatibility and the flexibility of the MC series, the box PC can also be used for various IOT and industrial control tasks without any problems.
Not only in terms of functionality, the B-Nimis BC-Pi proves to be extremely flexible, because customized solutions according to your requirements are also easy to realize

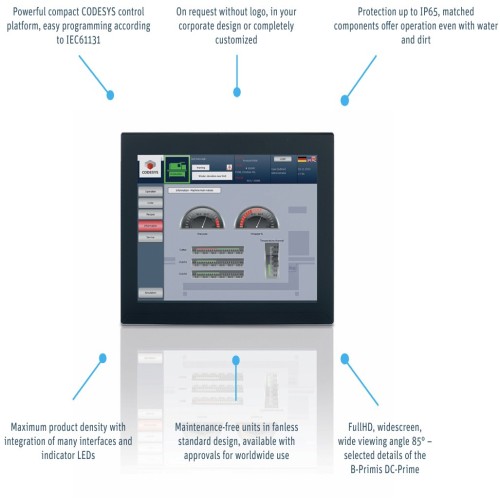

High-end display control system
With the CANtrol DC series, Berghof Automation once introduced the combination of controllers and HMI terminals into the automation market.
The design of the B-Primis DC series display controller was based not only on this experience, but also on the knowledge gained from the realization of numerous projects with consistent suggestions and helpful customer requests in order to implement the respective application extraordinarily well. It all depends on the small details – B-Primis DC contains many features in the standard that are unparalleled in the performance class, and it is constantly becoming more and more.
The device series combines the products of the B-Primis ET / control panel and B-Fortis CC-Slim / compact control series and automatically benefits from all the extensions we work on every day.
All functions and features, including the extensive basic equipment of the two excellent product series, are combined in the current HMI controller: extremely powerful and proven high-quality fail-safe components, extensive on-board peripherals, countless technological functions or clean fronts.
With the Classic version, resistive touch panels are available, equipped with a high-quality frame. The Prime version consists of frameless capacitive displays.

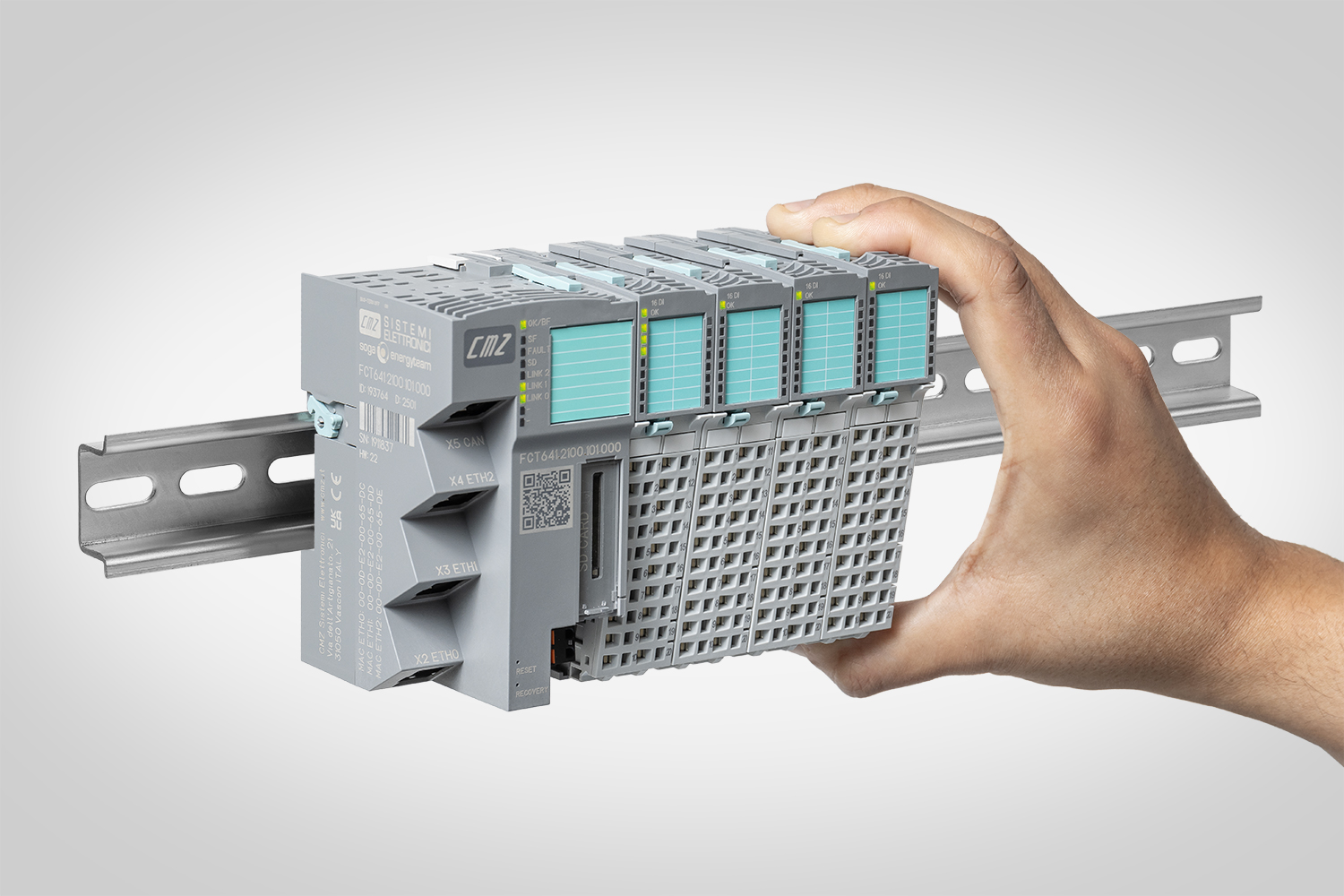

For industrial motion control solutions into a single and compact technological device, CMZ Sistemi Elettronici provide FCT640/641 programmable plc controllers: new generation, modular, compact and high performing systems based on CODESYS 3.5 with integrated I/Os.
The controllers are equipped with all the field buses used in industry (EtherCAT, CANopen, ModbusTCP) and integrated modular I/O units, both digital and analog.
RP064I0 Peripheral manages 32 digital inputs with integrated functions for incremental encoder and counters, 32 digital outputs, 2 analog inputs and 2 analog outputs, with CAN fieldbus and CANopen DS401 protocol.
RP064 I/0 is used as:
400/230 Vac
5 A SIZE M
10 A, 20 A SIZE L
5 A, 8,5 A - SIZE M

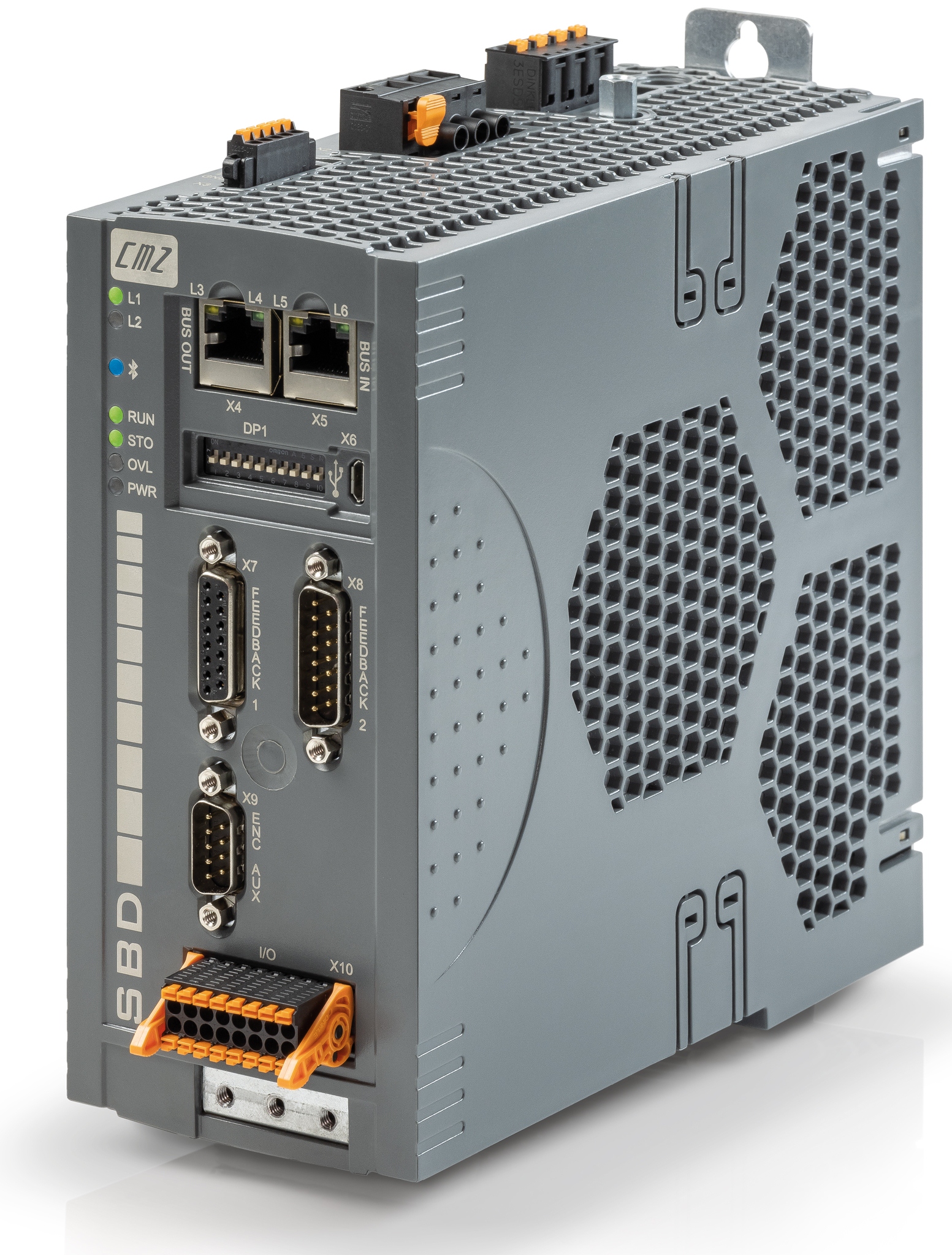

BRUSHLESS SMART DRIVE STAND ALONE SBD/PLC
All versions of SBD drives have an integrated PLC IEC-61131 wich allows to customize the behavior of the drive decentralize the machine automation.
SBD/PLC, progammable in IEC-61131, is very powerful and ensures the managment of axios motion and of local I/Os, as well as the managment of remote axes and I/Os.

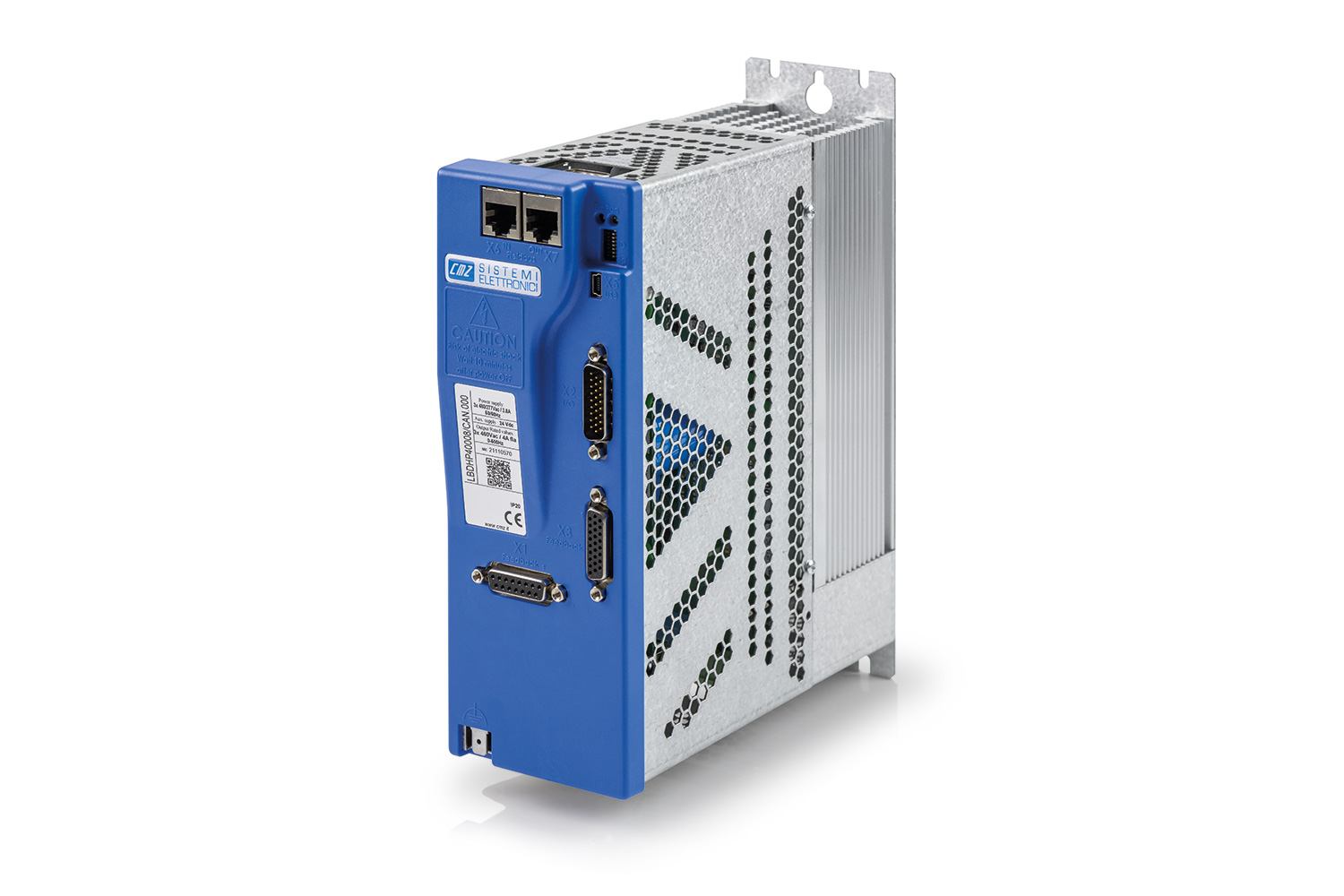

Ver manual CotizarLBD400 is a three-phase stand alone brushless drive
LBD230 is a single-phase stand alone brushless drive
It's extremely compact, reliable, high performing. In combination with brushless motors, it is a very suitable solution for applications on automatic machines requiring a strong kinematic performance.
The systems is equipped with standard safety functions STO SIL3 level.
Also available interfacing analog inputs and stepper motors simulation.

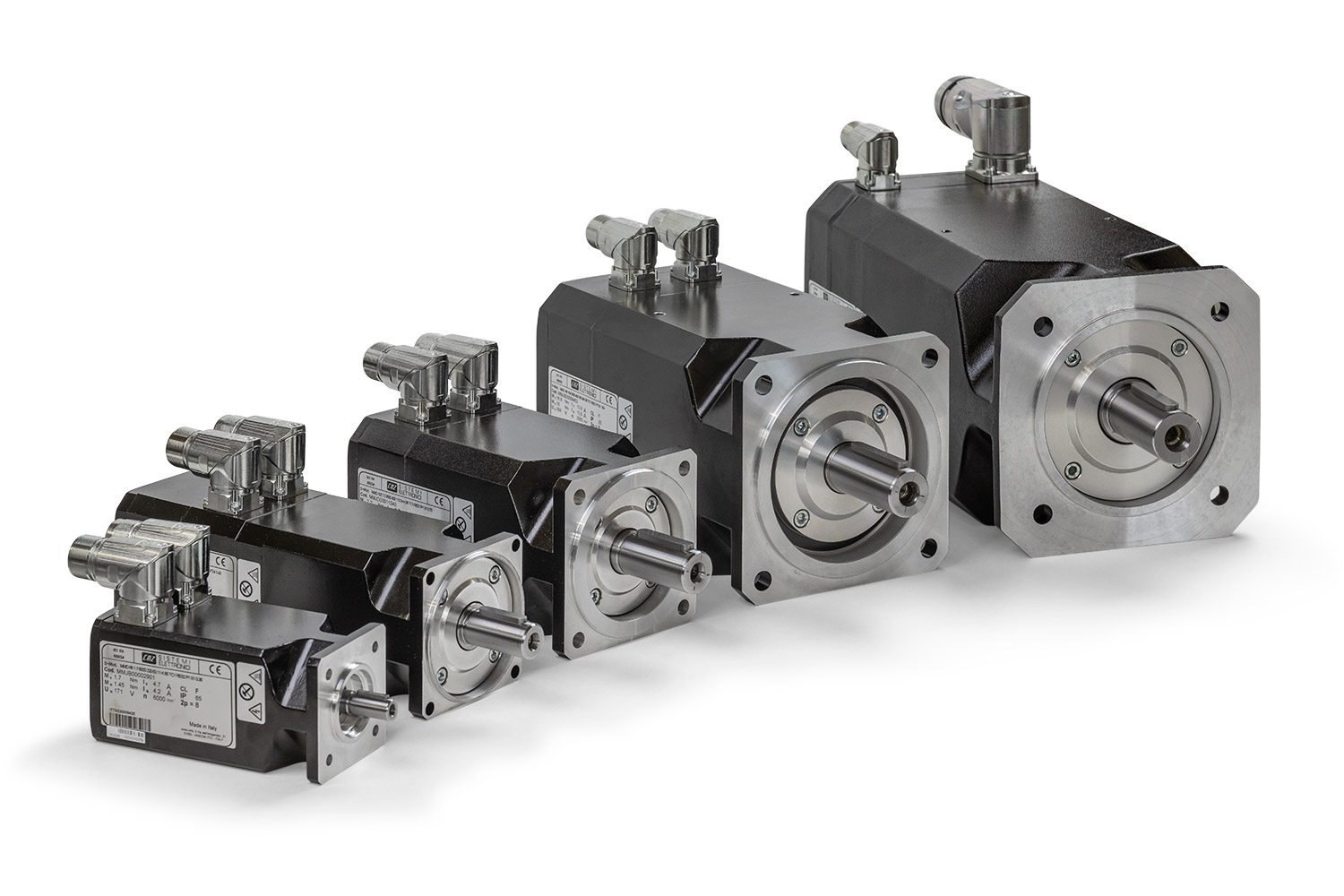

The models are available with stall torque from O,5 to 120 Nm. They can be supplied in versions 400 Vac and 230 VAac.
RPM 1500, 2000, 4500, 6000
Number of poles: 8/10/6 sinusoidal, depending on the model
Resolver or absolute encoder hiperface connection
Brake also available
IP65 standard. IP67 on request

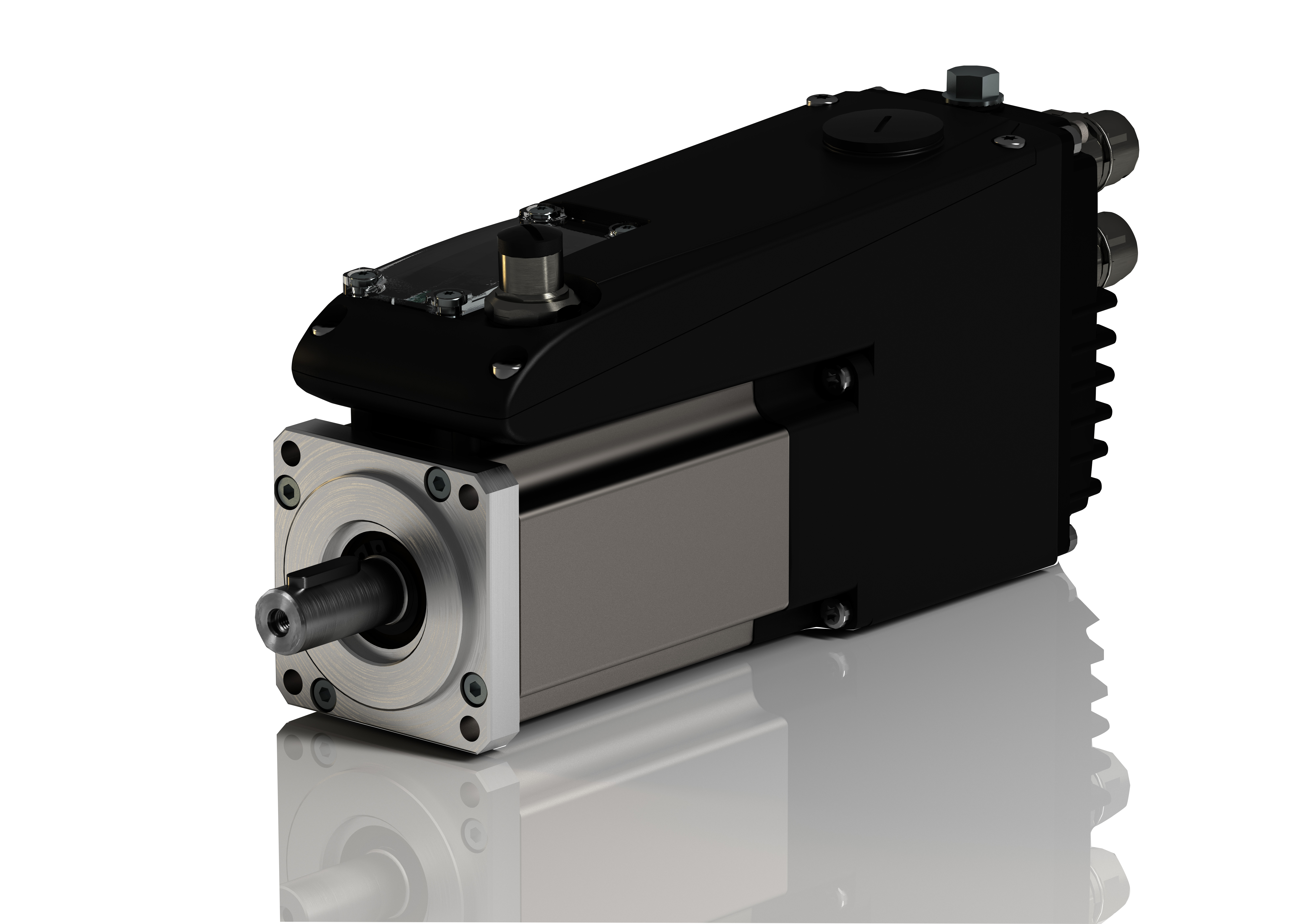

IBD drive with integrated electronics and IEC 61131 programmability offers maximum control and power in a compact space.
With decentralization of the drive directly on the motor, the machine architecture is simplified: reduced wiring, more linear machine design, optimized and increasingly efficient processes.
Each model can be developed with solutions designed upon the specific project of the manufacturer, considering both electronics and mechanics.

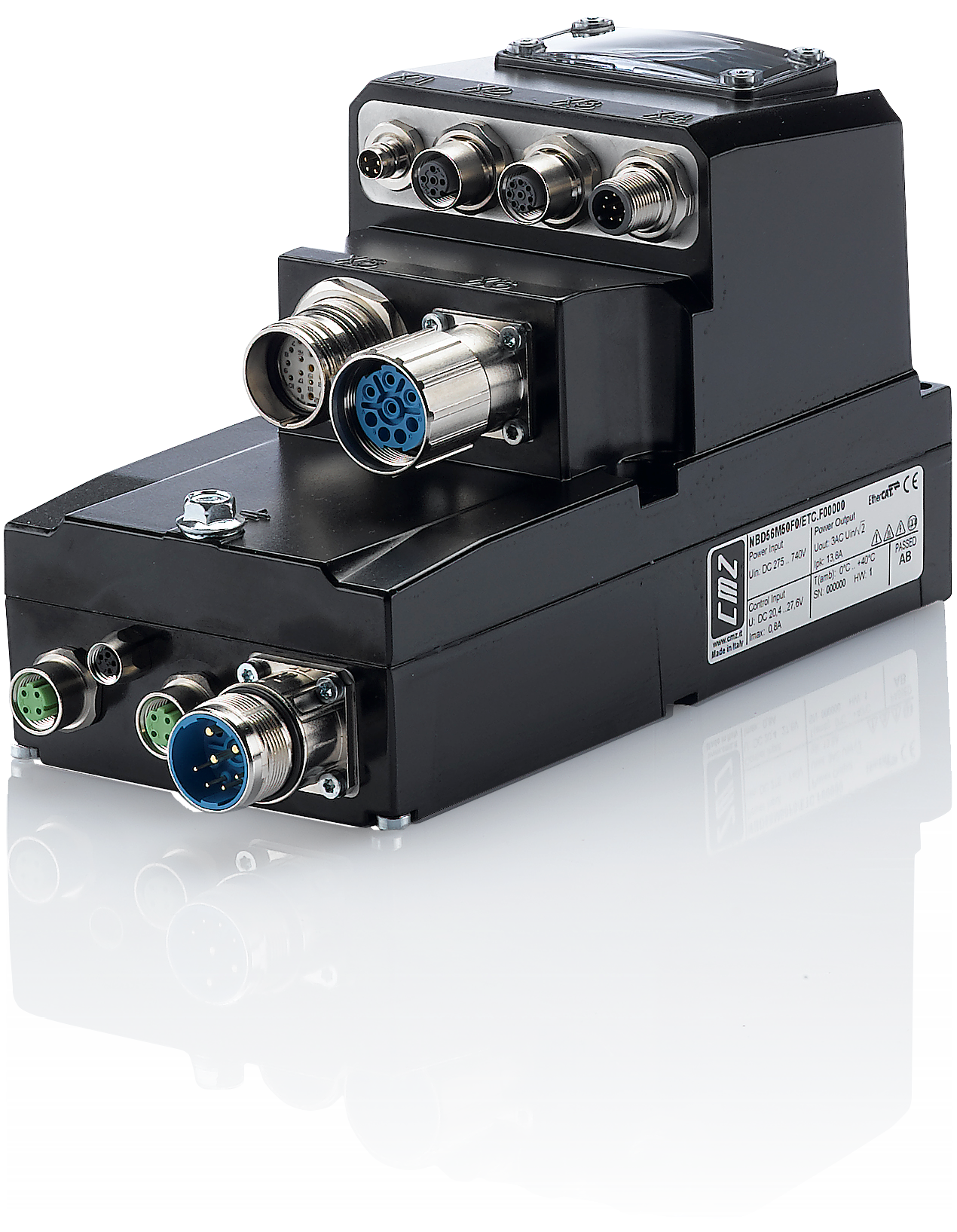

NBD nearby drive allows the management of servo motors with resolver, incremental encoder, incremental encoder with hall sensor, absolute encoder HIPERFACE.
IP65 protection makes possible to install NBD drives near the motor, directly on the mechanics of the machine.
The fieldbuses CANopen DS402 and DS402 over EtherCAT allow NBD to be used both with CMZ FCT controllers and other different branded controllers using CODESYS 3.5

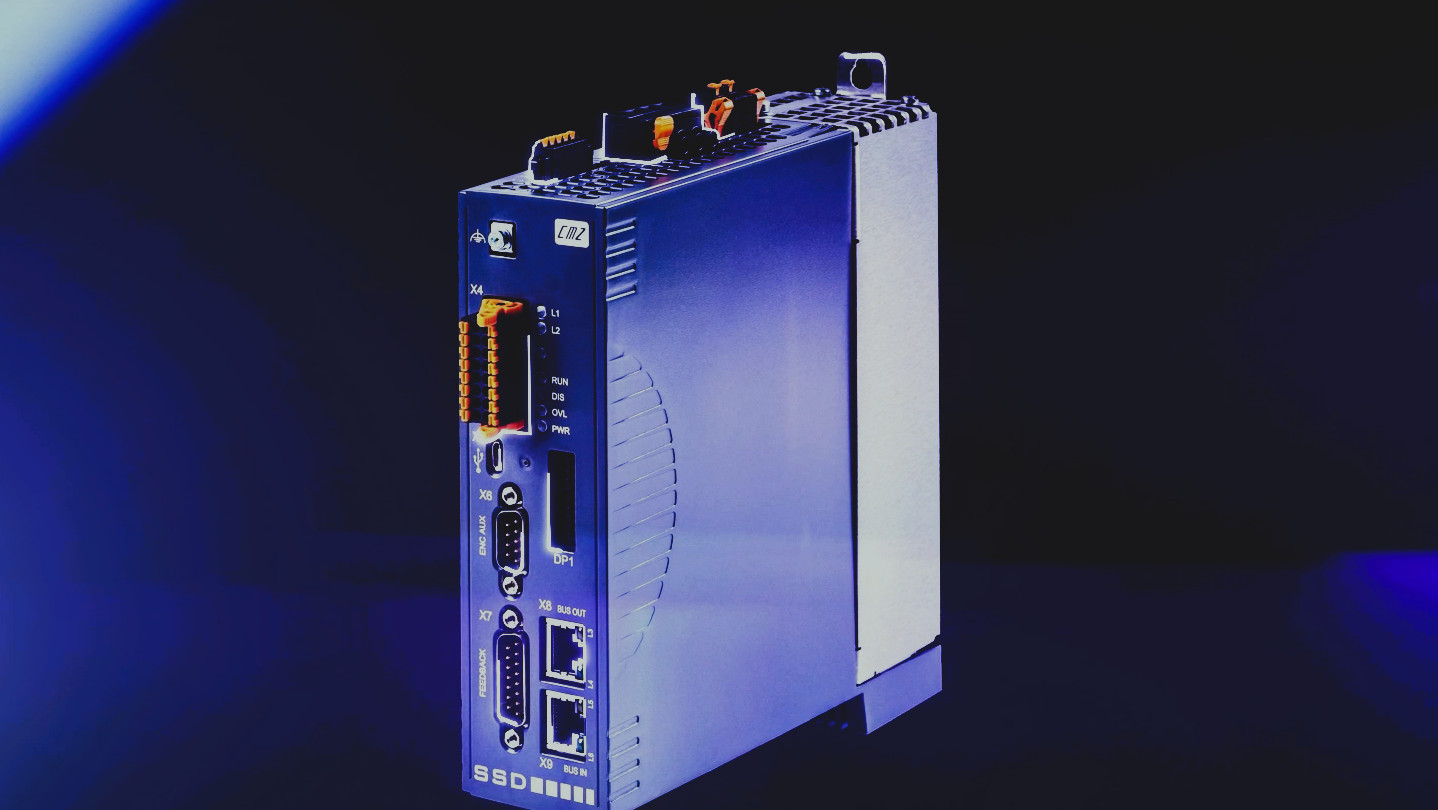

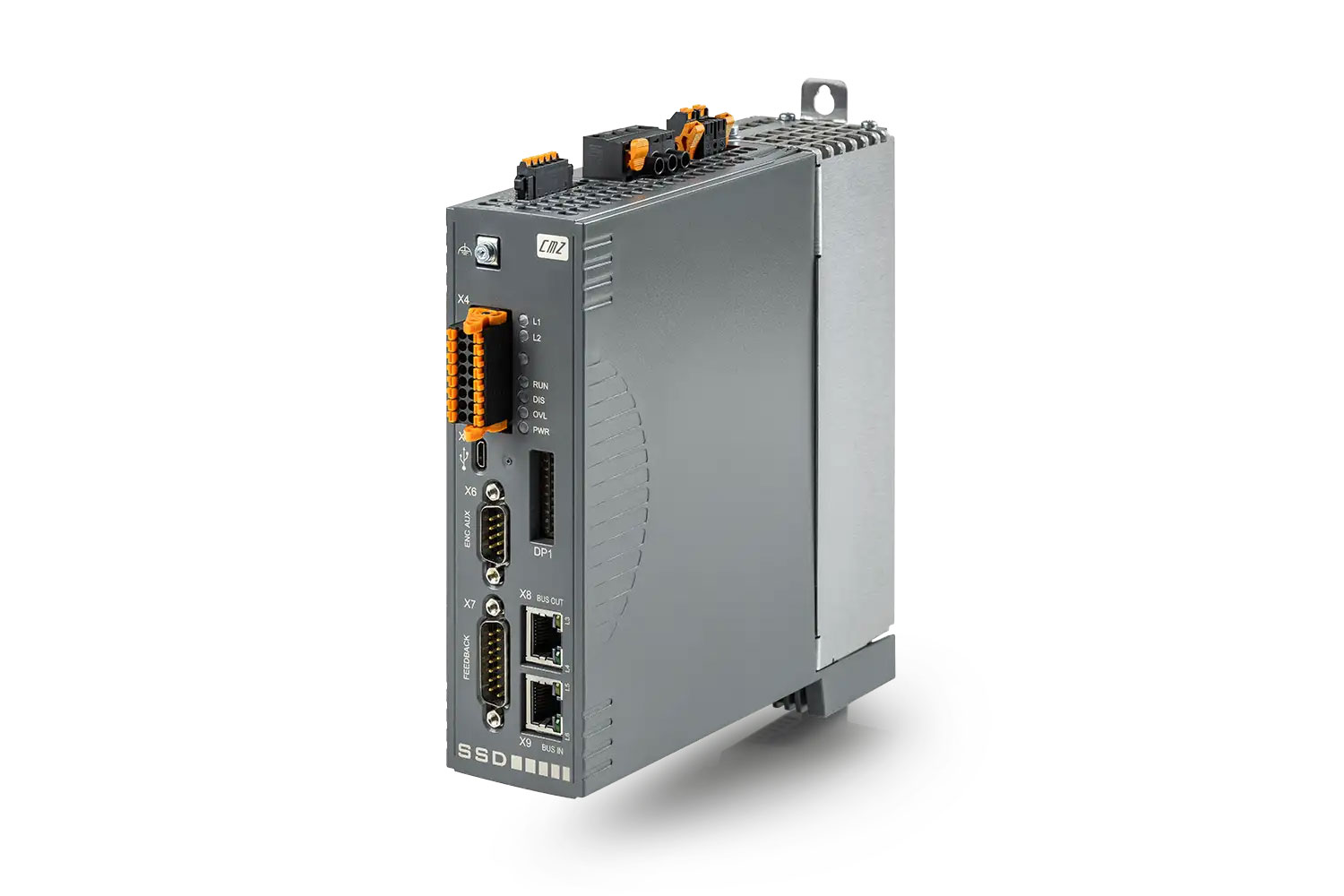

Servo drive stepless SSD stand alone
SSD is the new standalone stepper drive developed by CMZ with stepless technology.
Launched in 2024, it’s compact and highly performing: the perfect solution for stepper motors.
Programmability IEC 61131-3 with 2 possibilities of use:
SSD in PLC version allows the machine decentralization giving control functions directly on-board, by integrating the controller.
Combined with RP064IO expansion peripheral and a HMI panel, SSD drive in PLC version allows to independently manage the full automation of the machine, by determining no need for controller (in some types of applications).

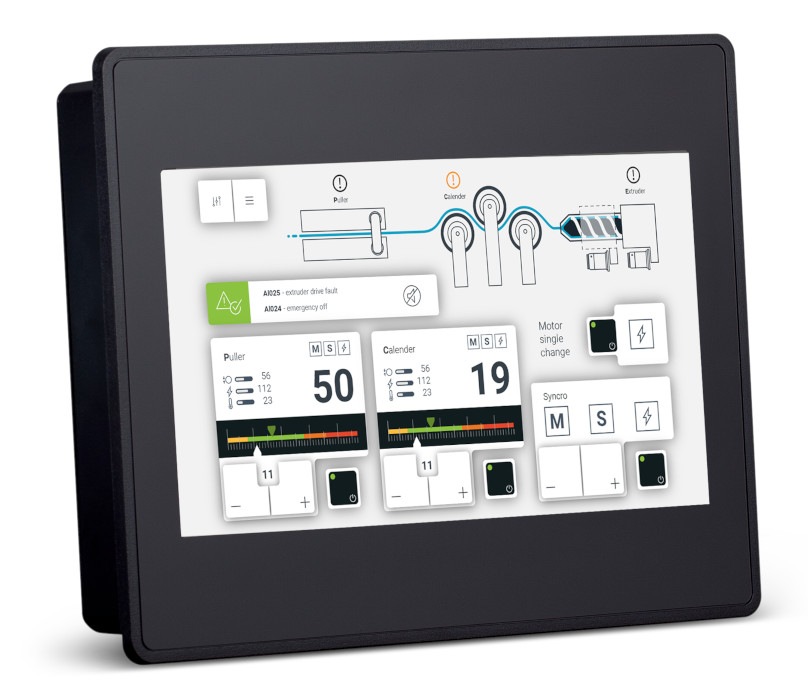

Ver manual CotizarThe eSMART and eX series combine state-of-the-art features with a rugged and light design and outstanding connectivity. These operator panels are the right choice for HMI applications such as factory and building automation and any kind of motion control applications.

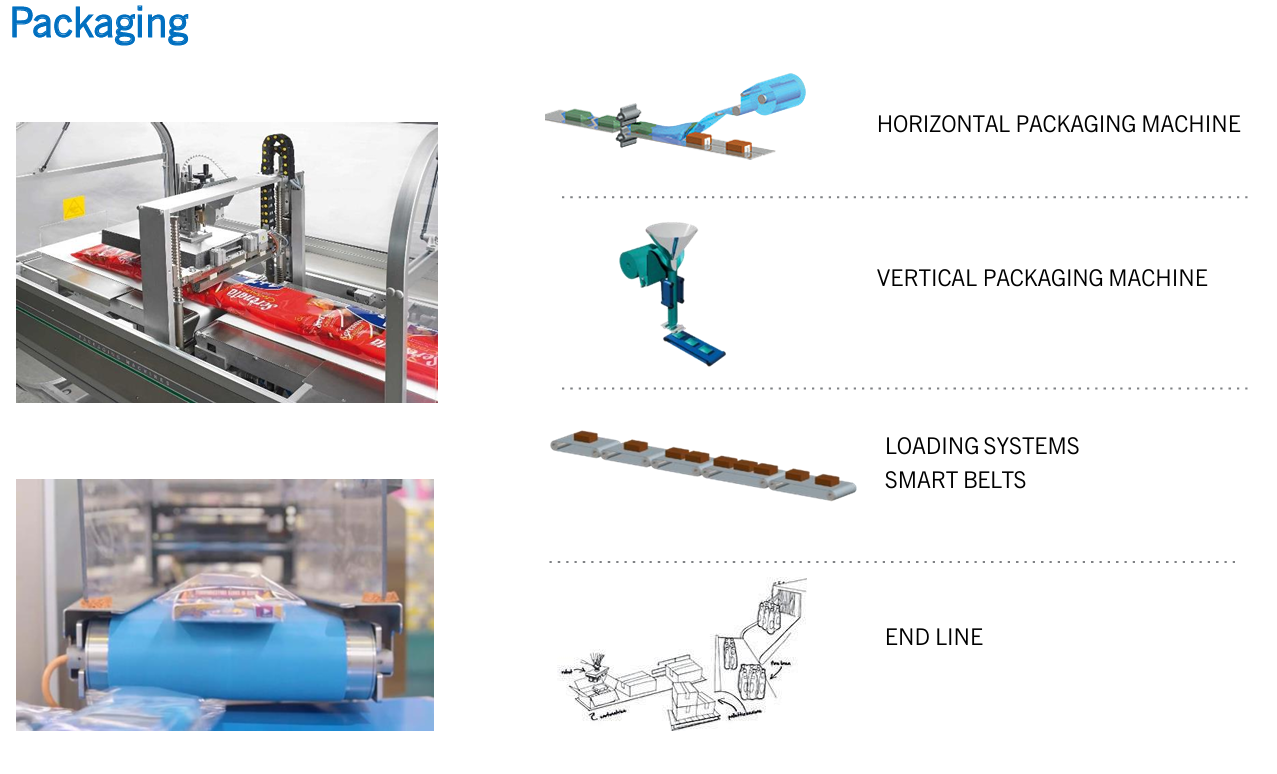

CMZ has over 30 years of experience in engineering solutions for the packaging industry.
Our software applicatives provide, in one shot, all the motion & control features and inputs for managing completely a multi-axis automatic packaging machine.
In addition, we have also developed complete hardware and software systems specifically dedicated to the packaging applications.
FlowPack represents an excellence in terms of CMZ know-how for the software experience and also for hardware technologies, very scalable according to the needs of the customer to satisfy both the dynamics of the machine and cost savings.
FlowPack can be designed either Horizontal or Vertical, including also the weighing and dosing of the product before sealing and cutting the pack.

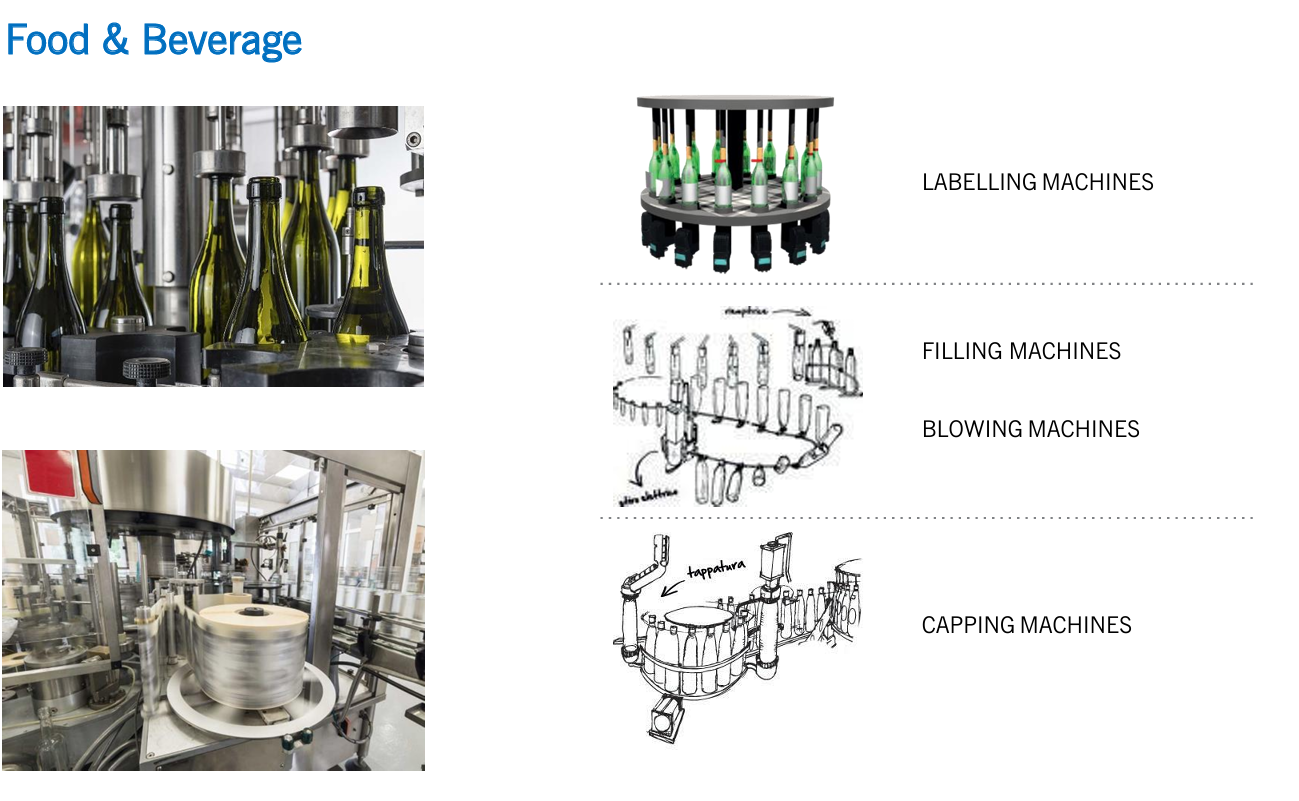

Ver manual CotizarCMZ has been pursuing a deep specialization in the food & beverage industry.
Our software applicatives provide, in one shot, all the motion control features and inputs for managing completely a multi-axis automatic food or beverage machine.
We develop different ready-to-use or tailored solutions including hardware and software.
This system can be centralized or decentralized. In both cases it strongly minimizes the need for electrical wirings.
Some typical machines where our technical skills are focused:

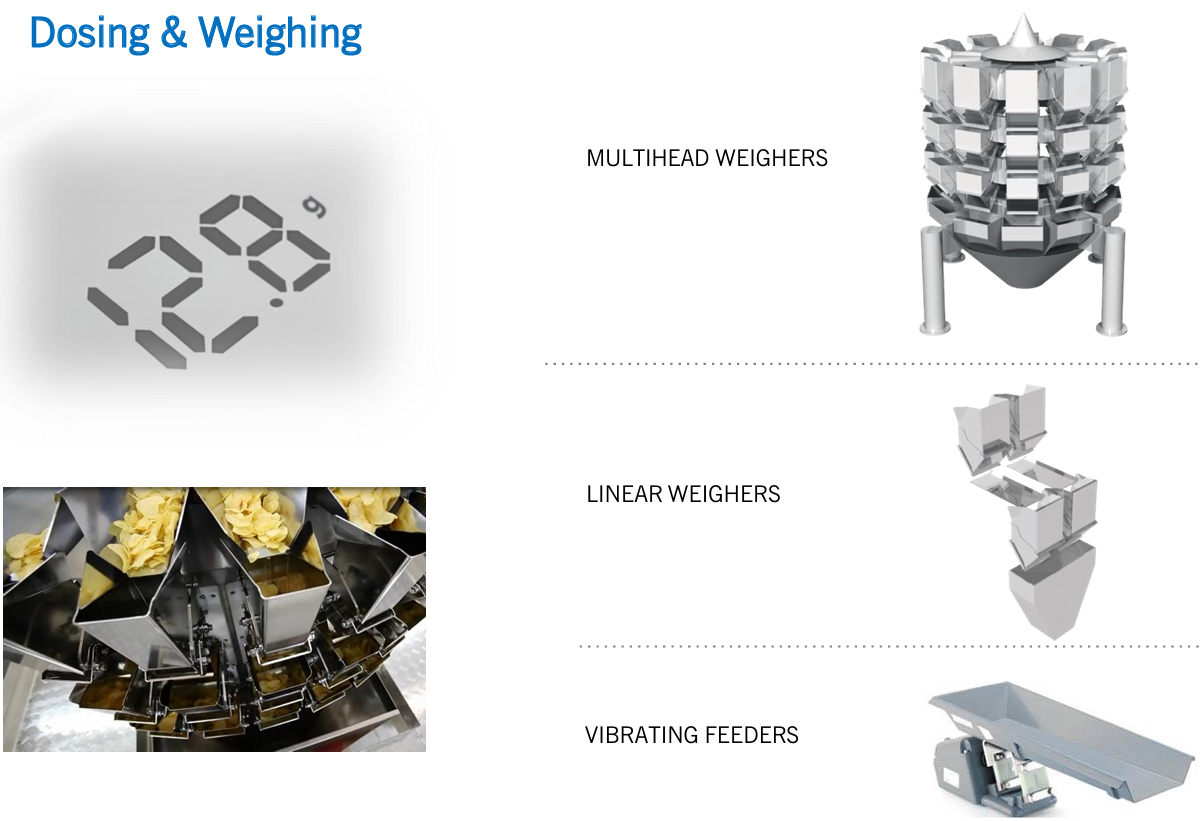

CMZ has decades of experience in engineering solutions for the dosing & weighing industry.
Our software applicatives provide, in one shot, all the motion control features and inputs for managing completely a multi-axis automatic dosing & weighing machine.
For multihead weighers we propose a complete solution for the management of these machines equipped with buckets featuring pneumatic or stepper motor actuators, configurable from 8 to 24 heads.
For linear weighers we propose a modular architecture by optimizing the different hardware drives and devices. Possible configurations are with single or double basket.
For vibrant feeders we offer dedicated devices for their management based on PWM technology load setting, for control up to 4 feeders.
Our software applicatives provide tangible benefits for OEMs:
We provide different ready-to-use or tailored solutions including hardware and software.
The printing industry has a very strong requirement for precision of motion processes, waste reduction, increasing of production, quality of workings, flexibility. CMZ experience is focused on 2 main processes involving the printing cylinders within printing machines:
This is achieved by offering brushless and stepless solutions (integrated, nearby or stand alone) with perfect accuracy in multi-axis control.
Besides, the availability of dedicated motion libraries allows OEMs and system integrators to realize performing machines with a faster time to market.
Paper converting is a highly dynamic sector demanding for efficient and sustainable industrial processes. CMZ is experienced in the automation of following types of machines:
Solicita tu cotizacion para refaccionamiento:
Contactanos: 8110110842 ------> alan.joya@syntexsystems.com
Solicita tu cotizacion para refaccionamiento:
Contactanos: 8110110842 ------> alan.joya@syntexsystems.com

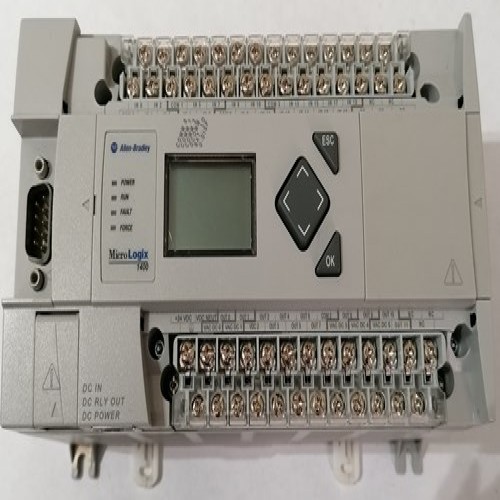

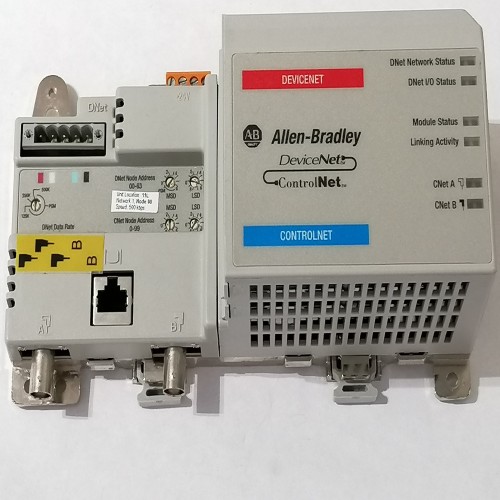

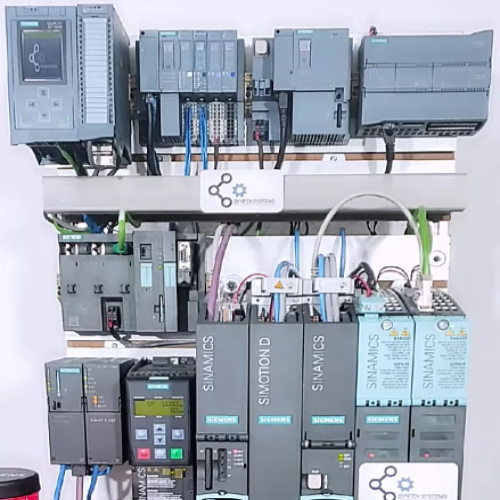

Manejamos equipos con altos estándares: Siemens, Allen-Bradley, CMZ & Berghof.
